Arch Curve Tent For Sport

Arch curve tent for sport is a unique tent type, it is designed base on the A shape tent and reasonably absorbs Chinese traditional architectural design elements. Roof beams are bent so that it becomes the curve shape. Arcum Tent is quite sturdy and durable, wind resistance capacity can 100 miles/hour(0.5kn/sqm), and it’s easily assembled, dismantled and portable.
Advantage:
1. Safety: Scientific design ensures the wind resistance of the awning, All aluminium alloy frames of the modular building have 6061-T6 surface treatment, which is highly resistant to oxidation and corrosion. No later maintenance expenses.
2. High recovery value: As a temporary building, the aluminium alloy part has high recycling value, after using it for a period of time, client could get back about 40% of the total value.
3. Installation fast: Arch curve tent for sport could be installed within 7 days, could hold over 500 people, for the traditional building, maybe 3 months at lest.
4. High space utilization: Aluminum alloy construction without inner rod structure design, 100% space utilization.

  • Gaoshan Tent
  • Shenyang
  • 25 days
  • 100,000 m²/month
  • Information
  • Video
  • Download


Sport Curve Tent

Product Description

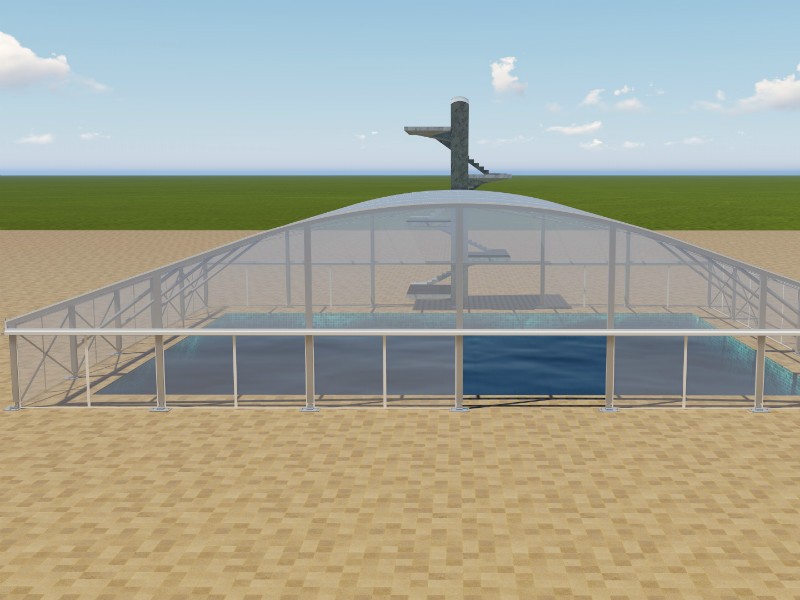

Arch curve tent for sport have special widths, lengths and different roof heights. Not only does it can provide more space for security checking spots and lounge for athletes and referees but also enables you to make maximum use of sports court structures. No matter the weather is, our Arch curve tents can make sure all matches carried out smoothly as scheduled. Depending on the size of the field, you can use sports tents to build sports fields of different sizes. It can make better use of the idle space in the city, include: badminton hall, swimming pool, basketball court, tennis court and so on.



Product Specification

Main Frame

Structure

Tent Span:20m, 25m, 30m, 35m, 40m, 50m.

Size:  203mm x 112mm x 4.5mm 300mm*120mm*5.0mm,350mm*120mm*5.0mm

Material: Hard Pressed Extruded Aluminum Alloy 6061-T6

Roof material

Density: 650g/  850g/㎡

Material: PVC knife-coated polyester fabric

Features: UV resistant, waterproof, fire retardant B1

Sidewall

White PVC fabric, Glass Wall, ABS hardwall

Wind Load

100km/h

Snow Load

10cm Thick Floating Snow

Temperature Index

-30 Degree Celsius ~ +70 Degree Celsius

Life Time

Aluminum alloy frame more than 16 years. PVC fabric 5 years.

Certification

SGS, ISO 9001,AWTA

Optional Accessories

Color of PVC Roof and Sidewall, Clear PVC Window Sidewalls, Glass Windows, Glass Door Units, Flooring System, Fixed Way, Rain Gutter between two tents, etc.

Arch curve tent for sport has wind-resistant level 10 and has a 10cm thick floating snow load, could be held even under severe weather conditions. Curve tent is combination of prefabricated building and modular production, with low requirements on the ground. According to the actual situation, the foundation can be installed by screw pile, steel drill, bolt and other serious ways

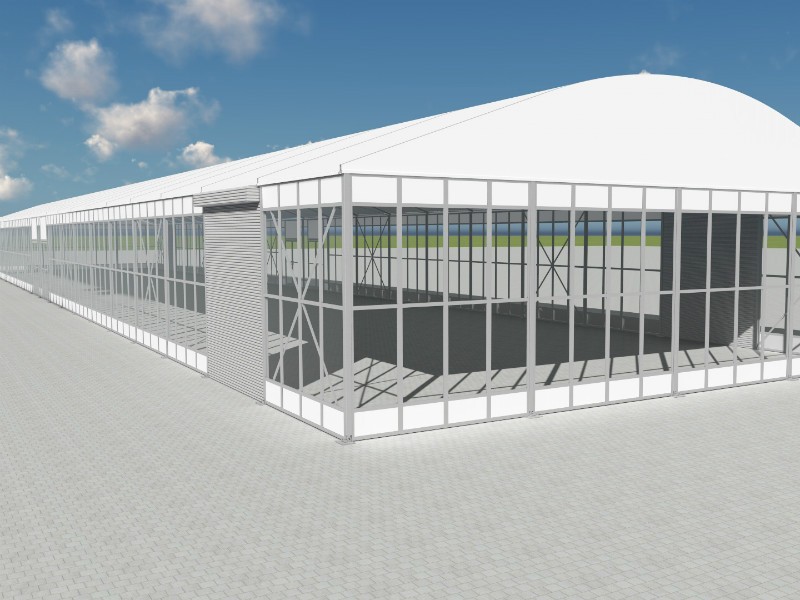

3D Drawing

Curve tent


80% customers also check below products:(please click the picture to know more)

 Arcum Marquee Tent       Sport Curve Tent

These two products are dome tents and hanger tents, which is also popular choice for party events and exhibition activities. Just like multi-side polygon tents, they all have unique shapes and large space.


Company Introduction

Curve tent


Gaoshan Tent Manufacture (Shenyang) CO., LTD established in 2003, which is main engaging in the design, manufacture, sales and rental of high-quality aluminum structure tent systems. In the north of China, we are one of the largest tents and air dome production bases. As a 17 years tents manufacturer, we have a professional design team. Now, we are the only company in China that has developed the marquee tent with 70m span width.


Our company has an area of production base 60,000㎡, over 200 employees, 100,000㎡monthly production capacity and 250,000㎡ inventory. Moreover, Gaoshan company has imported a lot of advanced equipment from Germany and other countries, such as fabric washing machine, high frequency cutting machines, color printers and so on. We sincerely invite you to visit our company.




Certifications (click the picture to know more)

Arcum Marquee Tent

Gaoshan had passed ISO 9001-2008 standard quality management system certification. And we obtained the national AAA level credit enterprise certification. Our factory equipment comes from domestic and foreign manufacturers. Because of the reliable product quality and advanced technology, we have accumulated many customers and satisfied them in the past 17 years. The warranty period is within 1 year after the customer receive the goods. Any question about service, contact us.


Package and Delivery

Sport Curve Tent

1.Aluminum Ally frame packed in Bubble paper

2. Hardware/accessories packed in solid carton box;

3. Roof and sidewall in professional PVC carry bag;

4. Customized packing


Exhibitions Show

Curve tent

Gaoshan is committed to expanding overseas markets. In the past year, Gaoshan has participated in 10 international exhibitions covering nearly 100 countries on six continents. It is expected to cooperate with customers from all over the world.
